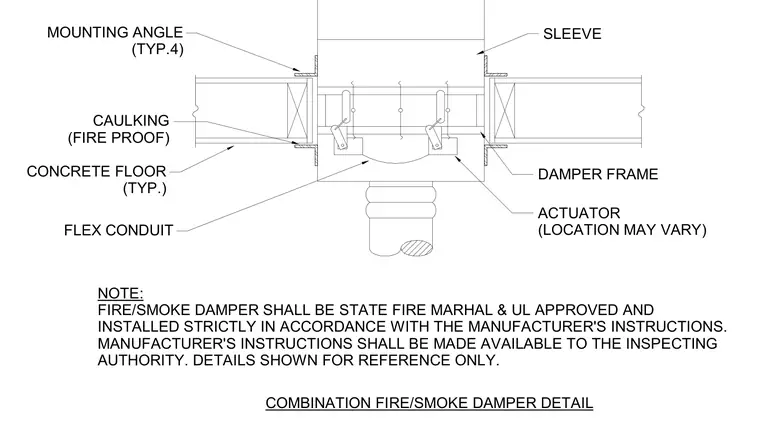

A combination fire and smoke damper is installed within a sleeve penetrating a typical concrete floor assembly. Four typical mounting angles secure the sleeve to the top and bottom of the concrete slab. Fireproof caulking seals the annular space around the penetration. An actuator, with a variable location, operates the damper mechanism, and flexible conduit supplies power to the assembly.
SLEEVE DAMPER FRAME ACTUATOR (LOCATION MAY VARY) FLEX CONDUIT CONCRETE FLOOR (TYP.) MOUNTING ANGLE (TYP.4) CAULKING (FIRE PROOF) NOTE: FIRE/SMOKE DAMPER SHALL BE STATE FIRE MARHAL & UL APPROVED AND INSTALLED STRICTLY IN ACCORDANCE WITH THE MANUFACTURER'S INSTRUCTIONS. MANUFACTURER'S INSTRUCTIONS SHALL BE MADE AVAILABLE TO THE INSPECTING AUTHORITY. DETAILS SHOWN FOR REFERENCE ONLY. COMBINATION FIRE/SMOKE DAMPER DETAIL
