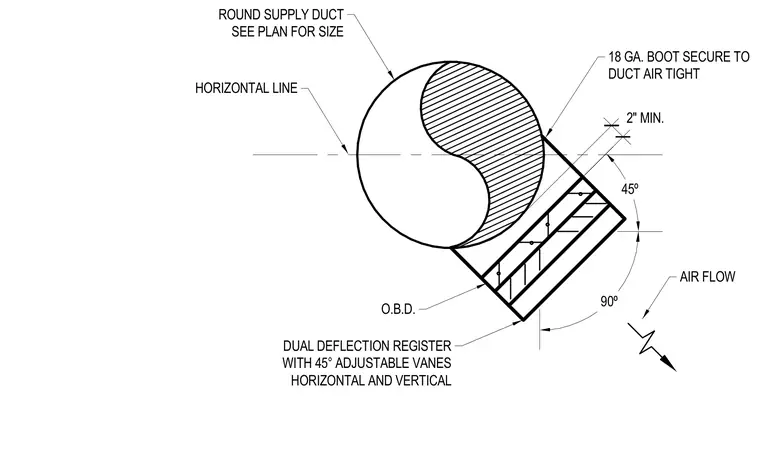

An eighteen gauge boot secures airtight to a round supply duct sized per plan. A dual deflection register with forty-five degree adjustable horizontal and vertical vanes mounts to the boot. An opposed blade damper regulates airflow through the assembly, maintaining a two-inch minimum clearance from the horizontal alignment line.
ROUND SUPPLY DUCT SEE PLAN FOR SIZE 18 GA. BOOT SECURE TO DUCT AIR TIGHT AIR FLOW 2" MIN. 90º 45º HORIZONTAL LINE O.B.D. DUAL DEFLECTION REGISTER WITH 45° ADJUSTABLE VANES HORIZONTAL AND VERTICAL
