Air-Cooled Chiller Piping

Elements

About this detail

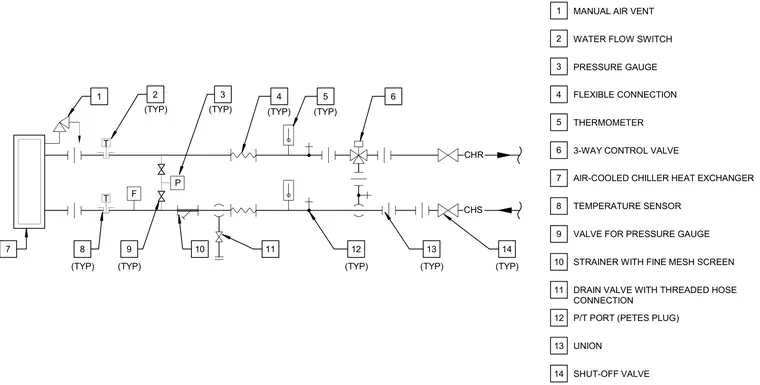

An air-cooled chiller piping diagram details the arrangement of supply and return lines connected to the chiller heat exchanger. The schematic incorporates manual air vents, water flow switches, pressure gauges with isolation valves, and flexible connections to isolate vibration. Temperature sensors, thermometers, and pressure/temperature test ports are positioned along the piping runs to monitor thermal performance. A strainer with a fine mesh screen protects downstream components, while drain valves with threaded hose connections facilitate system maintenance. Flow regulation is achieved through a three-way control valve, and shut-off valves allow section isolation.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
