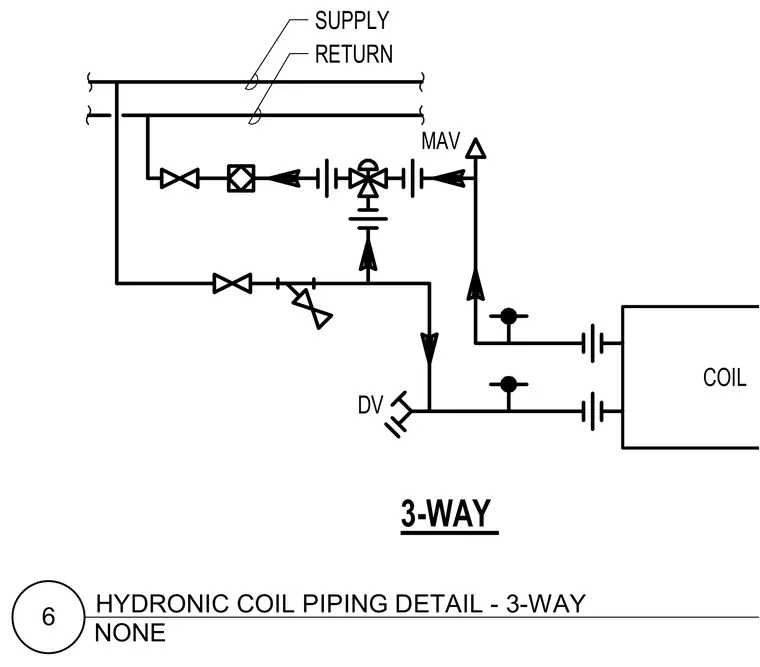

Piping connections for a hydronic coil utilize a 3-way control valve connected to supply and return mains. The layout incorporates isolation valves, unions, a strainer, and a motorized actuator valve designated as Maval alongside a drain valve. Flow directions are clearly indicated with arrows along the piping path to and from the coil unit.
