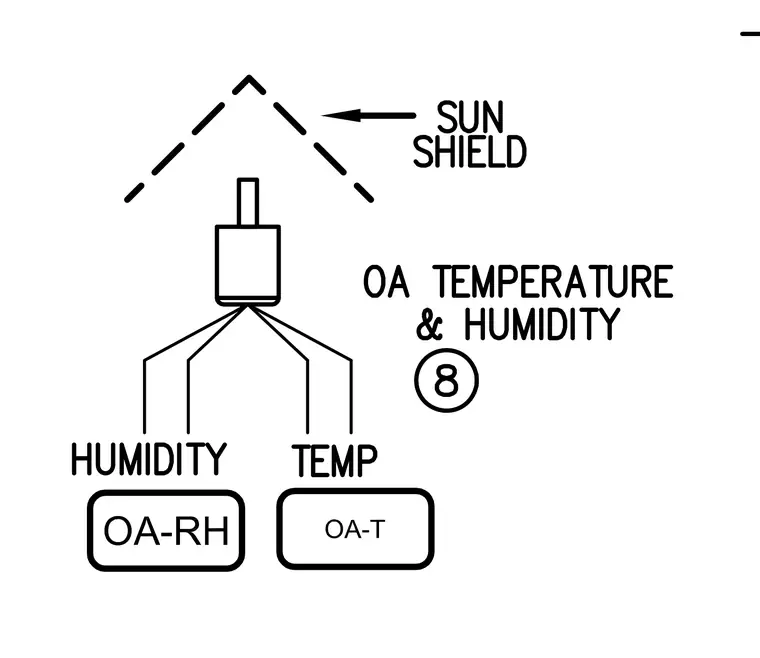

An outdoor air temperature and humidity sensor is positioned beneath a dashed sun shield for environmental protection. The sensor unit connects to separate humidity and temperature output points designated as OA-RH and OA-T.
