Wall Fan and Filter Assembly Connection Detail

Materials

Elements

About this detail

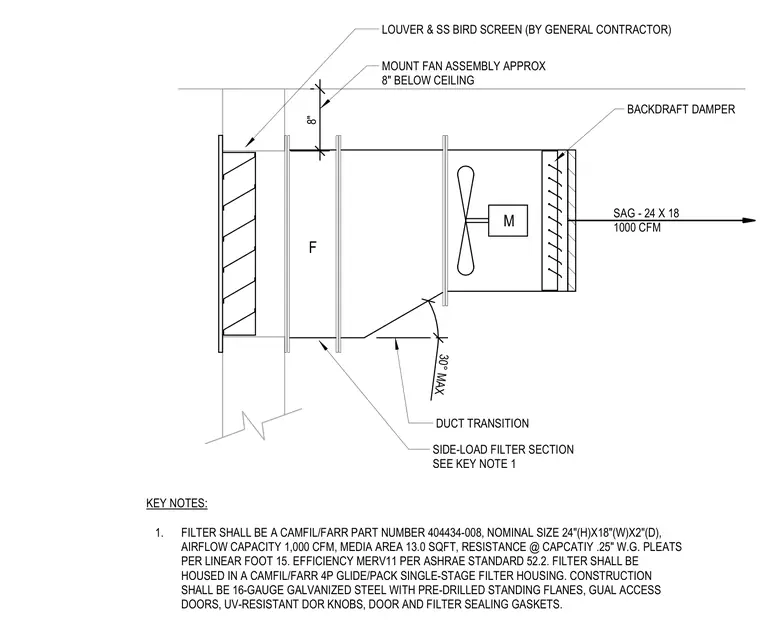

A wall-mounted fan assembly is positioned approximately eight inches below the ceiling, featuring a side-load filter section connected to a louver and stainless steel bird screen provided by the general contractor. A thirty-degree maximum duct transition connects the housing to the fan unit, which is paired with a backdraft damper and sized for one thousand CFM airflow through a twenty-four by eighteen inch supply air grille. Key notes specify a Camfil/Farr model 404434-008 single-stage filter housing constructed of sixteen-gauge galvanized steel with pre-drilled standing flanges, dual access doors, and gasketing.
