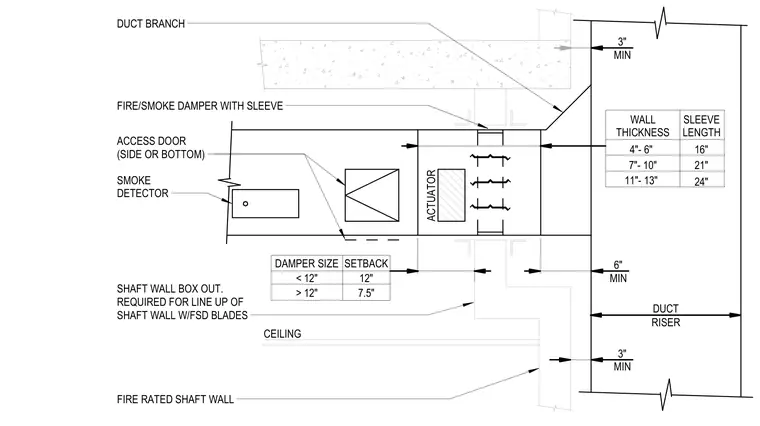

A fire/smoke damper with a sleeve penetrates a fire-rated shaft wall adjacent to a vertical duct riser. The assembly incorporates an actuator, a smoke detector, an access door on the side or bottom, and a duct branch connection. Sizing tables establish minimum wall thickness versus sleeve length requirements, as well as damper size versus setback distances. A shaft wall box-out is required for proper alignment of the shaft wall with the fire/smoke damper blades.
DUCT RISER 3" MIN 11"- 13" 7"- 10" 4"- 6" 16" 24" 21" SLEEVE LENGTH WALL THICKNESS 6" MIN 3" MIN SETBACK DAMPER SIZE 12" 7.5" < 12" > 12" SHAFT WALL BOX OUT. REQUIRED FOR LINE UP OF SHAFT WALL W/FSD BLADES CEILING ACTUATOR FIRE/SMOKE DAMPER WITH SLEEVE ACCESS DOOR (SIDE OR BOTTOM) DUCT BRANCH FIRE RATED SHAFT WALL SMOKE DETECTOR
