Mechanical · M-RGPSN

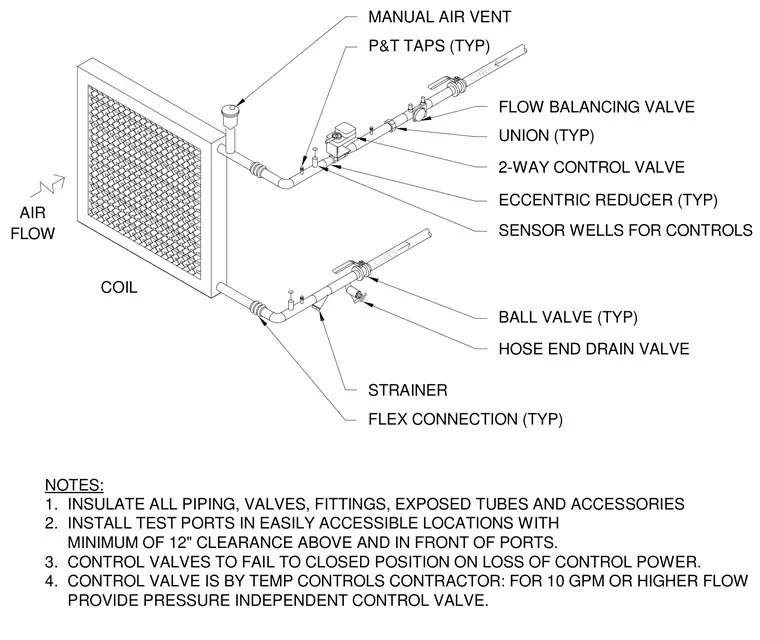

Two-Way Chilled Water Coil Detail

Elements

About this detail

Chilled water supply and return piping connects to the coil with isolation ball valves, strainers, and flexible connections. The supply line incorporates pressure and temperature taps, a two-way control valve with sensor wells, and eccentric reducers. Flow balancing valves, unions, and a manual air vent are installed along the piping run. Hose end drain valves are provided for system maintenance. All piping, valves, and fittings are insulated per specifications, and control valves are wired to fail closed on loss of power.
