Mechanical · M-RGESG

Pipe Rack Support Detail

Materials

Concrete Steel Stainless Steel Metal (misc.)

Elements

Roofs Floors / Slabs Arches Waterproofing / Flashing Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage Welded Connection Bolted Connection Embed Plate

About this detail

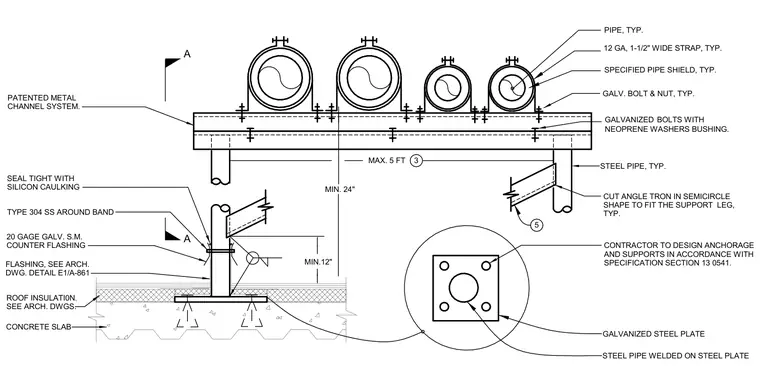

A pipe rack support assembly is mounted over a concrete slab with roof insulation. Steel pipe legs are welded to a galvanized steel base plate, which is anchored to the concrete structure. A patented metal channel system spans across the support legs to carry multiple steel pipes secured by twelve-gauge, one-and-a-half-inch-wide galvanized straps and bolts with neoprene washers and bushings. Flashing and twenty-gauge galvanized sheet metal counter-flashing are sealed tight with silicone caulking and a type 304 stainless steel band around the penetration.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
