A combination fire and smoke damper connects to a code-approved smoke detector mounted in the ductwork, with installation provided either factory-installed or by the fire alarm contractor. The assembly is wired with 120-volt single-phase power and utilizes factory wiring internal to the unit. A remote annunciator for the smoke detectors is provided by the fire and life safety contractor.

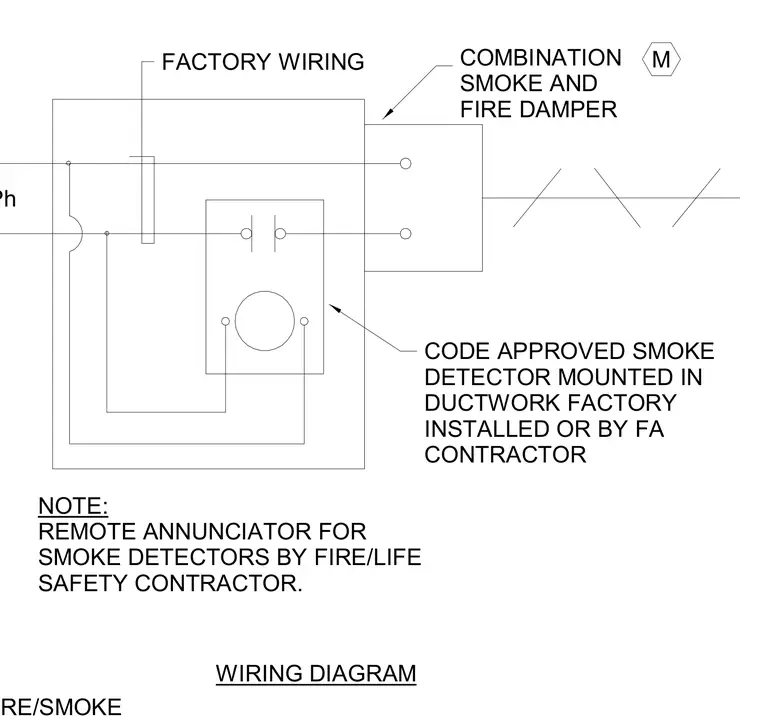

M COMBINATION SMOKE AND FIRE DAMPER CODE APPROVED SMOKE DETECTOR MOUNTED IN DUCTWORK FACTORY INSTALLED OR BY FA CONTRACTOR FACTORY WIRING 120V-1Ph NOTE: REMOTE ANNUNCIATOR FOR SMOKE DETECTORS BY FIRE/LIFE SAFETY CONTRACTOR. WIRING DIAGRAM SVM-D137 - COMBINATION FIRE/SMOKE
