Hanger Strap and Trapeze Hanger Details

Materials

Steel

Elements

Reinforcing

Connections

Bolted Connection

About this detail

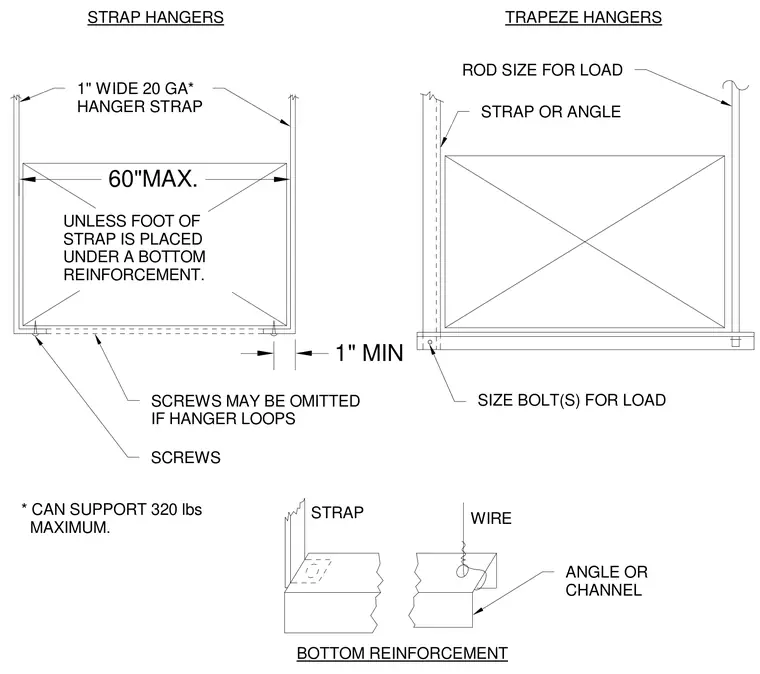

Suspended mechanical services are supported by hanger straps and trapeze hangers configured with steel angles or channels. The strap hangers utilize a one-inch wide by twenty gauge strap spaced at a maximum of sixty inches, with screws omitted if hanger loops are used or if the foot of the strap is placed under bottom reinforcement. Rod sizes, strap or angle selections, and bolts are sized for the applied load. Trapeze hangers employ rods, straps, or angles paired with angles or channels secured with bolts sized for the load. Bottom reinforcement details show straps or wires supporting angles or channels, with specific notes allowing a maximum support capacity of three hundred twenty pounds.
