An exterior wall penetration passes through a cast-in-place concrete or masonry wall utilizing a galvanized steel pipe sleeve for pipes smaller than six inches or a ten-gauge galvanized sheet steel round tube for six inches and larger. The sleeve is caulked in place and core-drilled for existing construction with non-shrink grout filling the void, while new construction receives a cast iron wall pipe with a retaining ring serving as an anchor and water stop. The annular space is packed with fiberglass insulation and sealed flush on both interior and exterior sides with a waterproof non-shrink silicone sealant. An escutcheon is installed on the exposed pipe within the finished interior space.

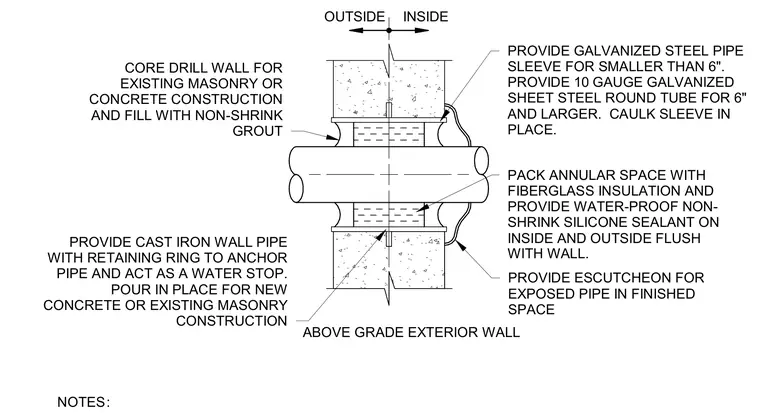

OUTSIDE INSIDE NOTES : PROVIDE GALVANIZED STEEL PIPE SLEEVE FOR SMALLER THAN 6". PROVIDE 10 GAUGE GALVANIZED SHEET STEEL ROUND TUBE FOR 6" AND LARGER. CAULK SLEEVE IN PLACE. PACK ANNULAR SPACE WITH FIBERGLASS INSULATION AND PROVIDE WATER-PROOF NON- SHRINK SILICONE SEALANT ON INSIDE AND OUTSIDE FLUSH WITH WALL. PROVIDE ESCUTCHEON FOR EXPOSED PIPE IN FINISHED SPACE PROVIDE CAST IRON WALL PIPE WITH RETAINING RING TO ANCHOR PIPE AND ACT AS A WATER STOP. POUR IN PLACE FOR NEW CONCRETE OR EXISTING MASONRY CONSTRUCTION CORE DRILL WALL FOR EXISTING MASONRY OR CONCRETE CONSTRUCTION AND FILL WITH NON-SHRINK GROUT ABOVE GRADE EXTERIOR WALL
