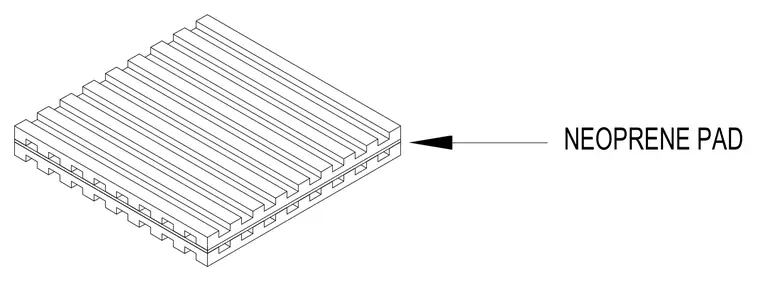

A molded elastomeric pad features parallel ribs on both top and bottom surfaces to provide acoustic damping and vibration isolation. The ribbed profile increases flexibility and helps distribute loads evenly beneath equipment bases or structural supports. The durable neoprene material resists compression set and environmental degradation under sustained mechanical loads.
