Mechanical · M-RBR43

Cable Restraint Assembly and Schedule

Connections

About this detail

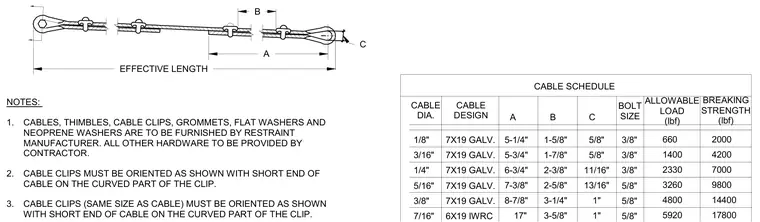

A seismic or mechanical cable restraint assembly is detailed along with a comprehensive cable schedule listing diameters from 1/8 inch to 7/16 inch. The assembly consists of galvanized or IWRC cables terminated with thimbles and secured using properly oriented cable clips with flat washers, neoprene washers, and grommets. The accompanying schedule provides specific dimensions for effective lengths, spacing parameters A, B, and C, bolt sizes, allowable loads in pounds-force, and breaking strengths. Notes specify that cables, thimbles, clips, grommets, and washers are supplied by the restraint manufacturer, while remaining hardware is provided by the contractor.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
