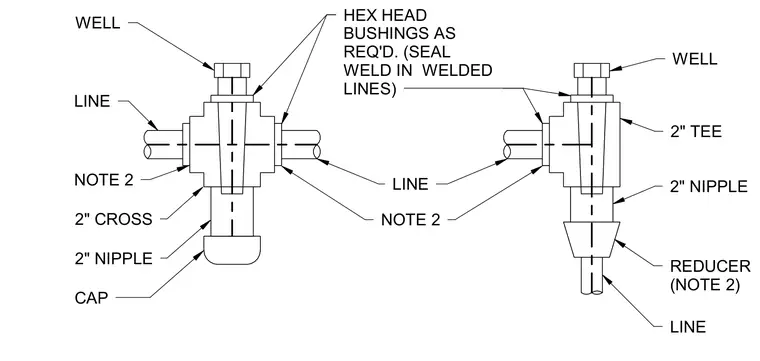

The thermal well assembly incorporates a two-inch pipe tee or two-inch cross connected to piping lines using two-inch nipples, hex head bushings, and reducers as required. Seal welds are specified in the welded lines for secure integration into the piping system. A cap seals the bottom of the cross configuration, while the thermal well inserts directly through the top bushing into the fitting.
WELL 2" TEE 2" NIPPLE REDUCER (NOTE 2) LINE LINE NOTE 2 WELL LINE NOTE 2 2" CROSS 2" NIPPLE CAP HEX HEAD BUSHINGS AS REQ'D. (SEAL WELD IN WELDED LINES)
