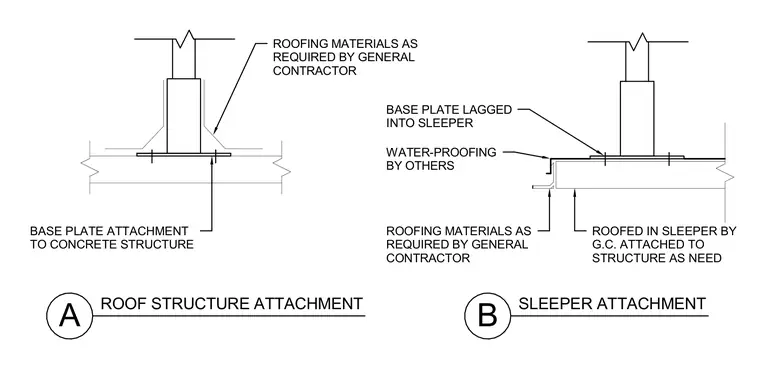

A base plate secures the roof structure to the concrete structure using mechanical anchors with roofing materials applied by the general contractor. A separate sleeper attachment details a base plate lagged into the sleeper over waterproofing provided by others. The sleeper is roofed in and attached to the structure as needed with general contractor roofing materials.
ROOFING MATERIALS AS REQUIRED BY GENERAL CONTRACTOR WATER-PROOFING BY OTHERS ROOFED IN SLEEPER BY G.C. ATTACHED TO STRUCTURE AS NEED BASE PLATE ATTACHMENT TO CONCRETE STRUCTURE BASE PLATE LAGGED INTO SLEEPER ROOFING MATERIALS AS REQUIRED BY GENERAL CONTRACTOR A ROOF STRUCTURE ATTACHMENT B SLEEPER ATTACHMENT
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
