A vertical pipe penetrates a metal roofing assembly and is sealed with a pre-molded ethylene propylene diene monomer or rubber boot installed per the manufacturer's instructions. A stainless steel clamping ring secures the top of the boot, maintaining the intact manufacturer rib or lip. Base flashing is provided by the general contractor with in-seam sealant and an approximate half-inch lap sealant applied at the roof interface. Installation must be modified to match the roofing type and installed to be water-tight, referencing architectural drawings for roof construction and plans for pipe size and location.

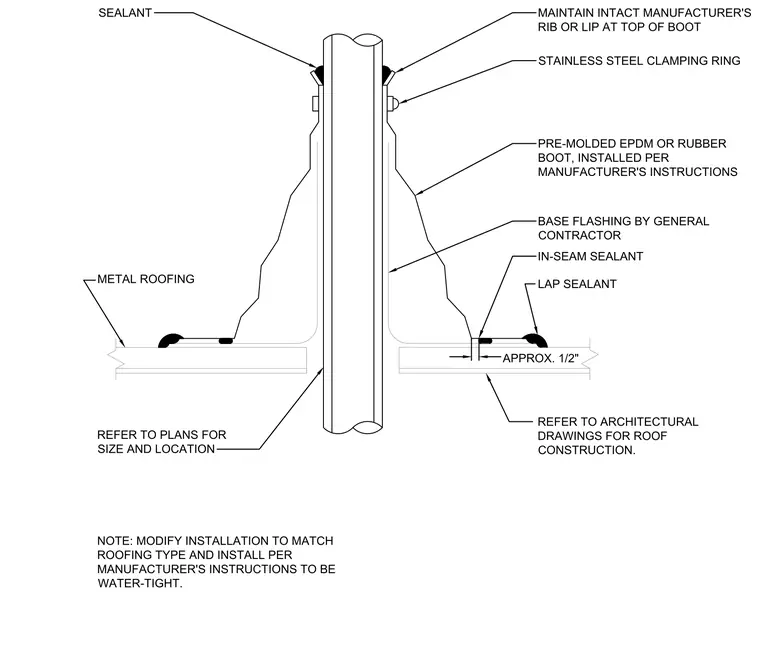

REFER TO ARCHITECTURAL DRAWINGS FOR ROOF CONSTRUCTION. REFER TO PLANS FOR SIZE AND LOCATION BASE FLASHING BY GENERAL CONTRACTOR PRE-MOLDED EPDM OR RUBBER BOOT, INSTALLED PER MANUFACTURER'S INSTRUCTIONS STAINLESS STEEL CLAMPING RING MAINTAIN INTACT MANUFACTURER'S RIB OR LIP AT TOP OF BOOT IN-SEAM SEALANT NOTE: MODIFY INSTALLATION TO MATCH ROOFING TYPE AND INSTALL PER MANUFACTURER'S INSTRUCTIONS TO BE WATER-TIGHT. LAP SEALANT APPROX. 1/2" SEALANT METAL ROOFING
