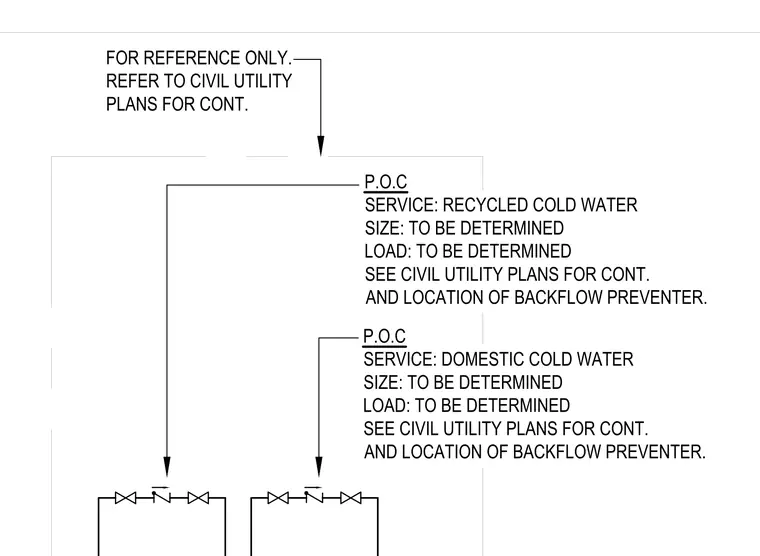

This drawing outlines the point of connection for domestic cold water and recycled cold water services. Pipe sizes and loads are to be determined, with continuation and backflow preventer locations referenced to civil utility plans. Valve and check valve assemblies are indicated on the service lines.
P.O.C SERVICE: DOMESTIC COLD WATER SIZE: TO BE DETERMINED LOAD: TO BE DETERMINED SEE CIVIL UTILITY PLANS FOR CONT. AND LOCATION OF BACKFLOW PREVENTER. FOR REFERENCE ONLY. REFER TO CIVIL UTILITY PLANS FOR CONT. P.O.C SERVICE: RECYCLED COLD WATER SIZE: TO BE DETERMINED LOAD: TO BE DETERMINED SEE CIVIL UTILITY PLANS FOR CONT. AND LOCATION OF BACKFLOW PREVENTER.
