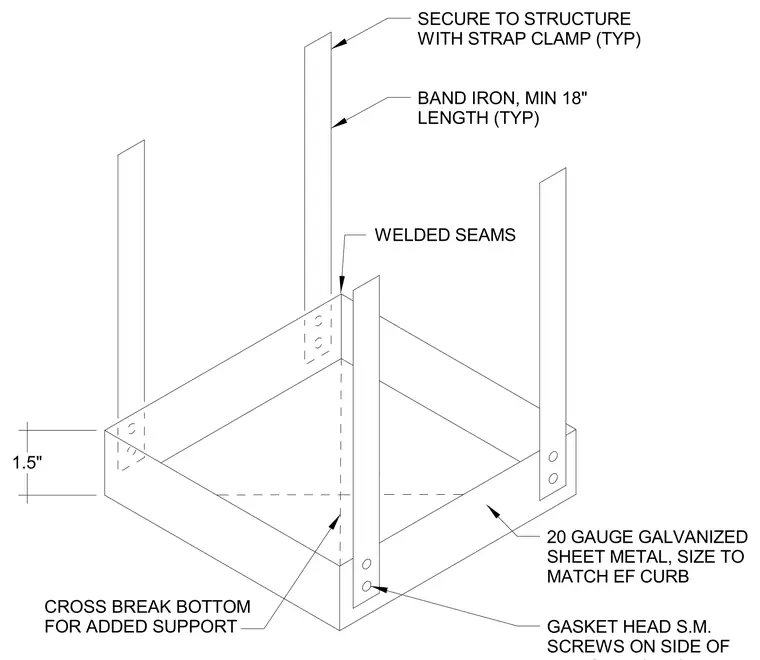

An exhaust fan drip pan is fabricated from twenty-gauge galvanized sheet metal with a size matched to the exhaust fan curb and features welded seams at the corners. The bottom of the pan incorporates a cross break for added structural support. The assembly is secured to the building structure using band iron strap clamps with a minimum length of eighteen inches, typically fastened to the sides of the pan using gasket head sheet metal screws.
1.5" WELDED SEAMS CROSS BREAK BOTTOM FOR ADDED SUPPORT GASKET HEAD S.M. SCREWS ON SIDE OF 20 GAUGE GALVANIZED SHEET METAL, SIZE TO MATCH EF CURB SECURE TO STRUCTURE WITH STRAP CLAMP (TYP) BAND IRON, MIN 18" LENGTH (TYP)
