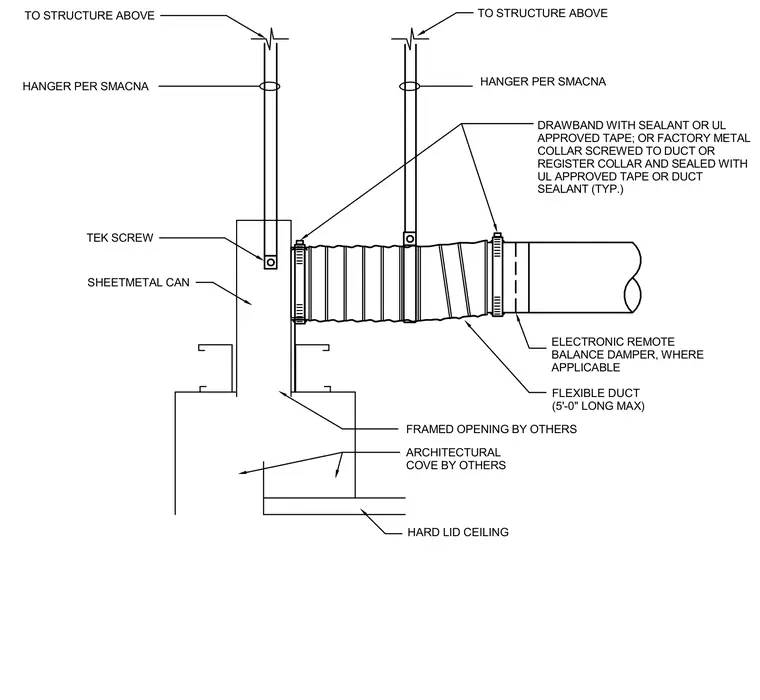

A flexible duct connects to a sheet metal can suspended from the structure above using SMACNA-compliant hangers. The flexible duct is secured with drawbands and sealant, UL-approved tape, or a factory metal collar attached with screws and sealed. An optional electronic remote balance damper is installed within the run, which is limited to a maximum length of five feet. The sheet metal can fastens with Tek screws to framing at an architectural cove within a hard lid ceiling.
FLEXIBLE DUCT (5'-0" LONG MAX) ARCHITECTURAL COVE BY OTHERS TEK SCREW TO STRUCTURE ABOVE TO STRUCTURE ABOVE DRAWBAND WITH SEALANT OR UL APPROVED TAPE; OR FACTORY METAL COLLAR SCREWED TO DUCT OR REGISTER COLLAR AND SEALED WITH UL APPROVED TAPE OR DUCT SEALANT (TYP.) HANGER PER SMACNA HANGER PER SMACNA ELECTRONIC REMOTE BALANCE DAMPER, WHERE APPLICABLE HARD LID CEILING FRAMED OPENING BY OTHERS SHEETMETAL CAN
