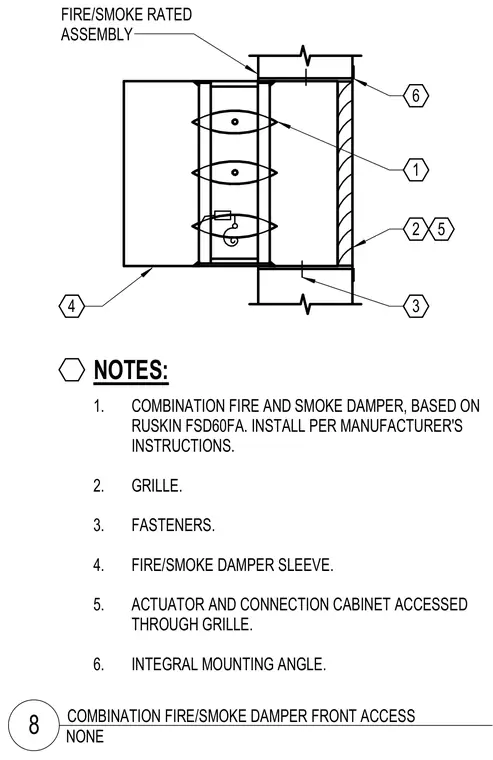

A combination fire and smoke damper based on the Ruskin FSD60FA model installs inside a sheet metal sleeve penetrating a fire-rated assembly. An integral mounting angle secures the sleeve to the barrier. Fasteners attach the grille to the sleeve, providing front access to the internal damper blades, actuator, and connection cabinet.
1. COMBINATION FIRE AND SMOKE DAMPER, BASED ON RUSKIN FSD60FA. INSTALL PER MANUFACTURER'S INSTRUCTIONS. 2. GRILLE. 3. FASTENERS. 4. FIRE/SMOKE DAMPER SLEEVE. 5. ACTUATOR AND CONNECTION CABINET ACCESSED THROUGH GRILLE. 6. INTEGRAL MOUNTING ANGLE. NOTES: FIRE/SMOKE RATED ASSEMBLY 6 1 2 3 5 4 NONE 8 COMBINATION FIRE/SMOKE DAMPER FRONT ACCESS
