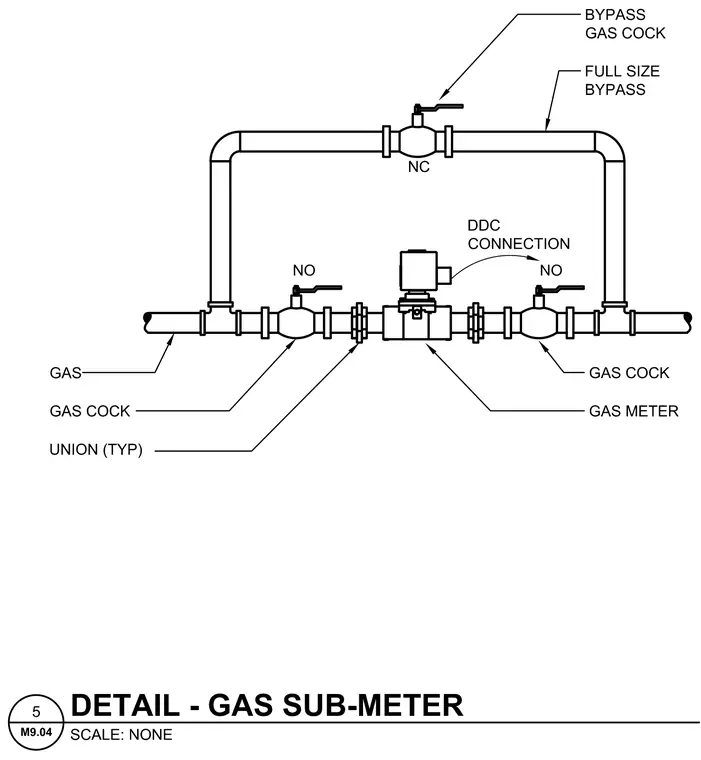

The gas line incorporates a gas meter flanked by typical unions and gas cocks on the inlet and outlet sides. A full-size bypass line loops over the meter assembly, equipped with a normally closed bypass gas cock. The meter features a direct digital control connection with associated normally open gas cocks on either side of the primary meter run.
