This adjustable floor cleanout assembly integrates into the finished floor slab with a secured rim and scoriated cover flush to the surface. A Leveleze adjustable collar threads into the body to accommodate minor floor elevation variances during installation. The internal drop utilizes a gasket cleanout plug and an inside caulk connection secured with a joint gasket. The balance of the piping mirrors standard cleanout-to-grade configurations.

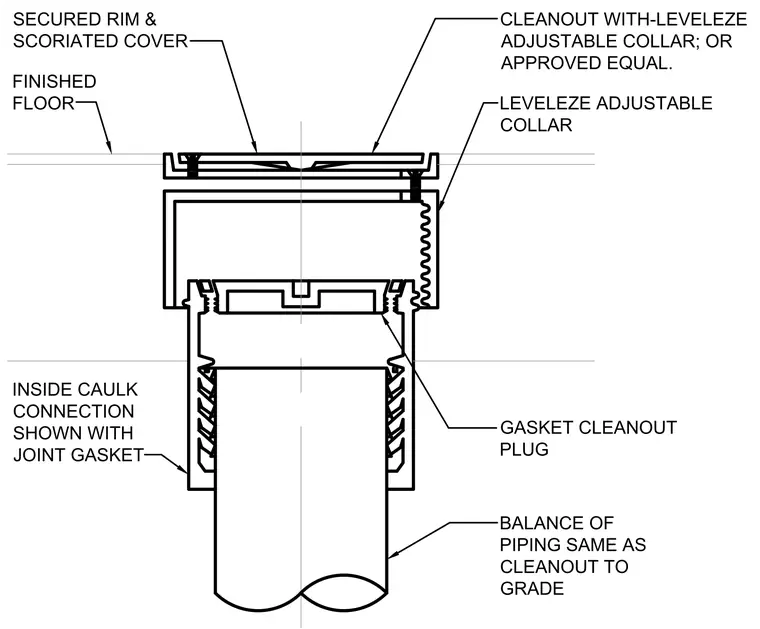

INSIDE CAULK CONNECTION SHOWN WITH JOINT GASKET BALANCE OF PIPING SAME AS CLEANOUT TO GRADE GASKET CLEANOUT PLUG LEVELEZE ADJUSTABLE COLLAR CLEANOUT WITH-LEVELEZE ADJUSTABLE COLLAR; OR APPROVED EQUAL. FINISHED FLOOR SECURED RIM & SCORIATED COVER
