An inline exhaust fan cabinet features a directional airflow path and includes a hinged access panel for maintenance. When installed above a ceiling, the motor is rotated to a side position to accommodate tight vertical clearances.

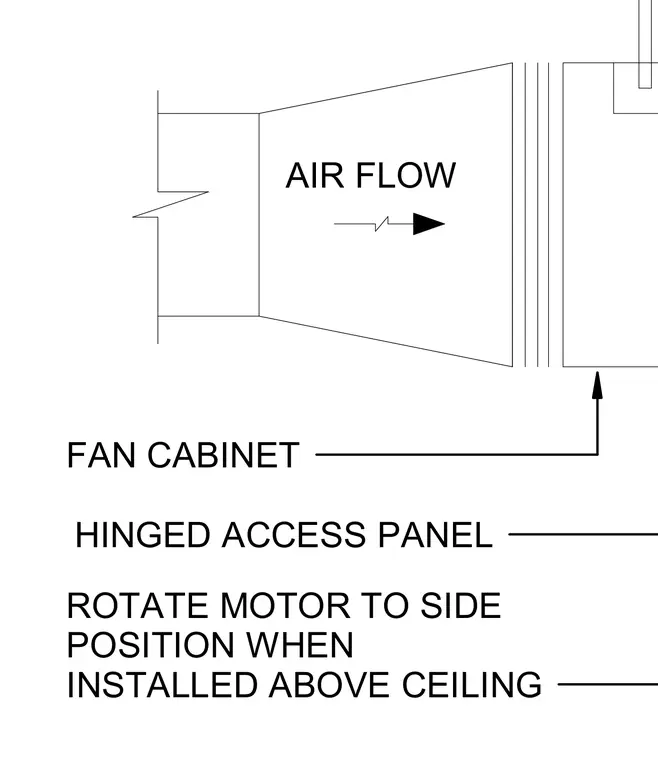

AIR FLOW FAN CABINET HINGED ACCESS PANEL ROTATE MOTOR TO SIDE POSITION WHEN INSTALLED ABOVE CEILING
