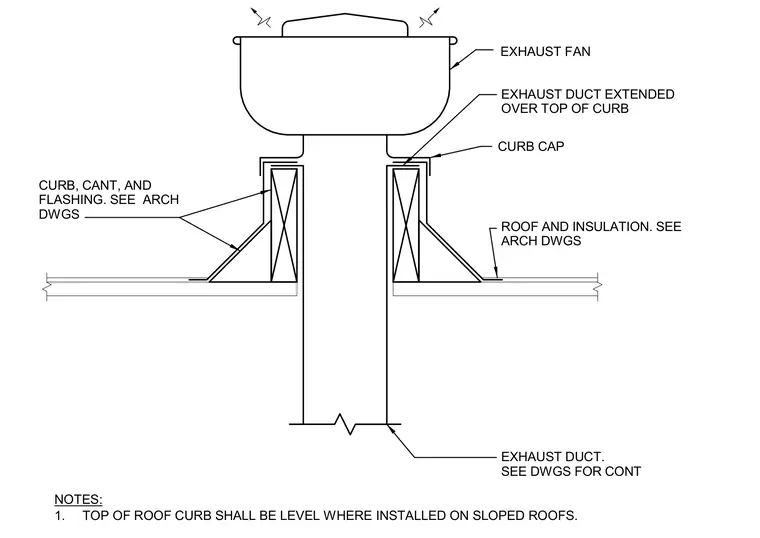

An upblast exhaust fan mounts directly to a level roof curb set over sloped roof construction. The exhaust duct extends through the curb and over the top of the curb beneath a curb cap. Wood nailers, cant strips, roof insulation, and flashing details are coordinated per architectural drawings. The top of the roof curb remains level regardless of roof slope.
NOTES: 1. TOP OF ROOF CURB SHALL BE LEVEL WHERE INSTALLED ON SLOPED ROOFS. ROOF AND INSULATION. SEE ARCH DWGS CURB, CANT, AND FLASHING. SEE ARCH DWGS EXHAUST DUCT. SEE DWGS FOR CONT EXHAUST FAN EXHAUST DUCT EXTENDED OVER TOP OF CURB CURB CAP
