Mechanical · M-QW5RP

Duplex End Suction Base Mounted Pump

Materials

Connections

About this detail

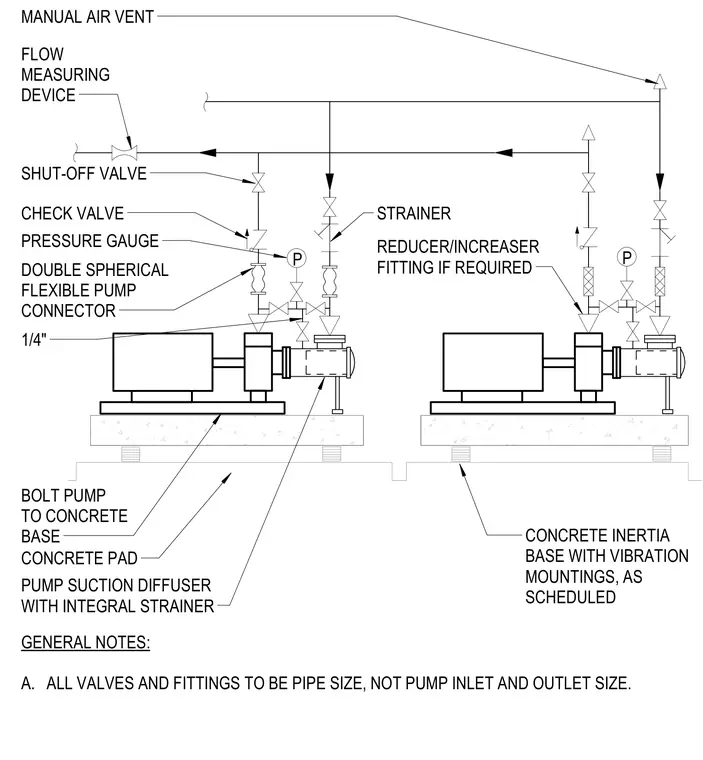

A duplex end suction base mounted pump assembly is anchored to a concrete inertia base with vibration mountings sitting on a concrete pad. The suction side includes a pump suction diffuser with an integral strainer, a reducer or increaser fitting if required, a double spherical flexible pump connector, a pressure gauge, a check valve, and a shut-off valve. The discharge side features a shut-off valve, a flow measuring device, and connection to a manual air vent at the high point of the piping. All valves and fittings are sized to match the pipe size rather than the pump inlet and outlet size.
