Mechanical · M-QTG4N

Model CBV Combination Full Port Ball Valve

Elements

About this detail

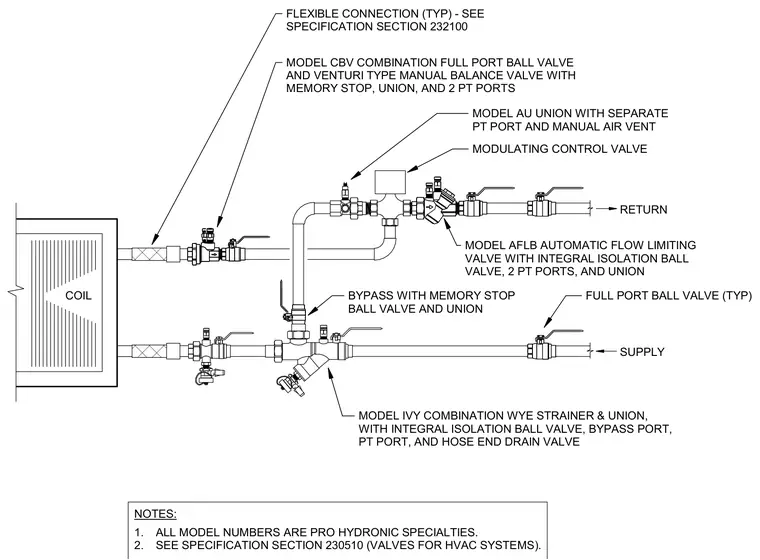

The supply and return piping arrangement connects to an HVAC hydronic coil using flexible connections and threaded unions on both lines. The supply line incorporates a combination full port ball valve and venturi-type manual balance valve with a memory stop and pressure-temperature ports, alongside a wye strainer assembly equipped with an isolation ball valve, bypass port, pressure-temperature ports, and a hose end drain valve. A bypass line with a memory stop ball valve and union connects the supply and return paths. The return line features a modulating control valve, an automatic flow-limiting valve with an integral isolation ball valve and pressure-temperature ports, and a union with a separate pressure-temperature port and manual air vent.
