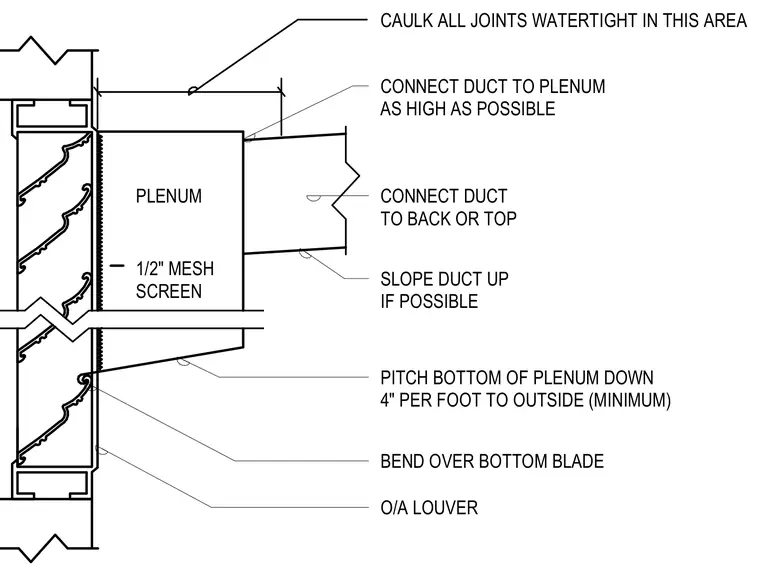

A sheet metal duct connects to a plenum behind an exterior waterproof louver with an outside air configuration. All joints in the connection area require watertight caulking. The duct ties into the back or top of the plenum as high as possible, with the duct sloping upward if possible. A one-half-inch mesh screen protects the louver opening, and the bottom blade bends over the screen. The bottom of the plenum pitches downward a minimum of four inches per foot toward the outside.
1/2" MESH SCREEN CAULK ALL JOINTS WATERTIGHT IN THIS AREA PLENUM CONNECT DUCT TO PLENUM AS HIGH AS POSSIBLE CONNECT DUCT TO BACK OR TOP SLOPE DUCT UP IF POSSIBLE PITCH BOTTOM OF PLENUM DOWN 4" PER FOOT TO OUTSIDE (MINIMUM) BEND OVER BOTTOM BLADE O/A LOUVER
