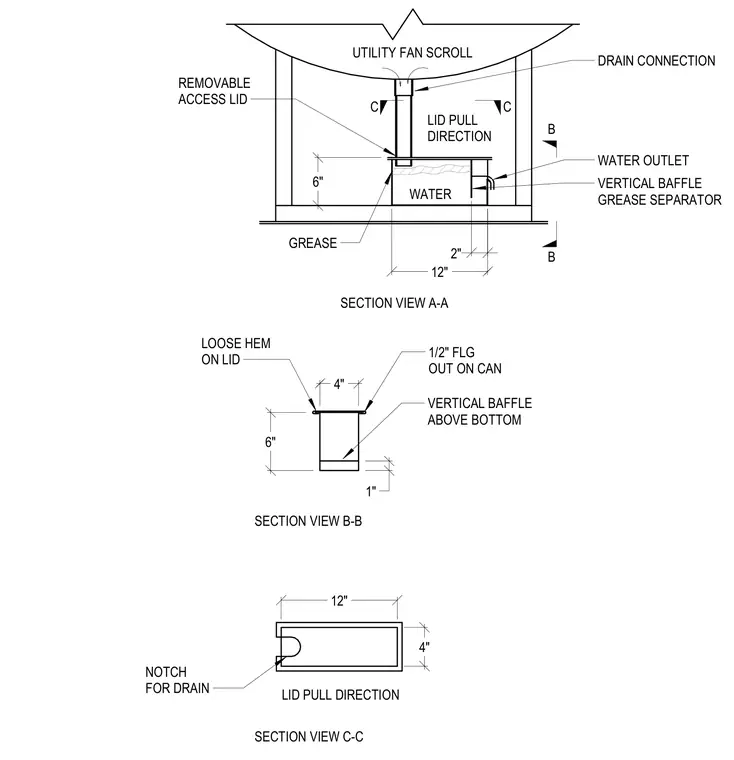

Utility fan scroll with a drain connection leading into a removable access lid comprising the grease exhaust fan drain assembly. The drain assembly includes a 12-inch by 4-inch separator can with a vertical baffle positioned 1 inch above the bottom and a water outlet located 2 inches from the edge. A 1/2-inch flange extends outward on the can with a loose hem on the lid, and section view C-C shows a 12-inch by 4-inch dimension with a notch for the drain.
LID PULL DIRECTION DRAIN CONNECTION WATER OUTLET VERTICAL BAFFLE GREASE SEPARATOR UTILITY FAN SCROLL LID PULL DIRECTION REMOVABLE ACCESS LID GREASE WATER 1/2" FLG OUT ON CAN VERTICAL BAFFLE ABOVE BOTTOM LOOSE HEM ON LID NOTCH FOR DRAIN 12" 4" 6" 1" 4" 6" 2" 12" SECTION VIEW A-A SECTION VIEW B-B SECTION VIEW C-C B B C C
