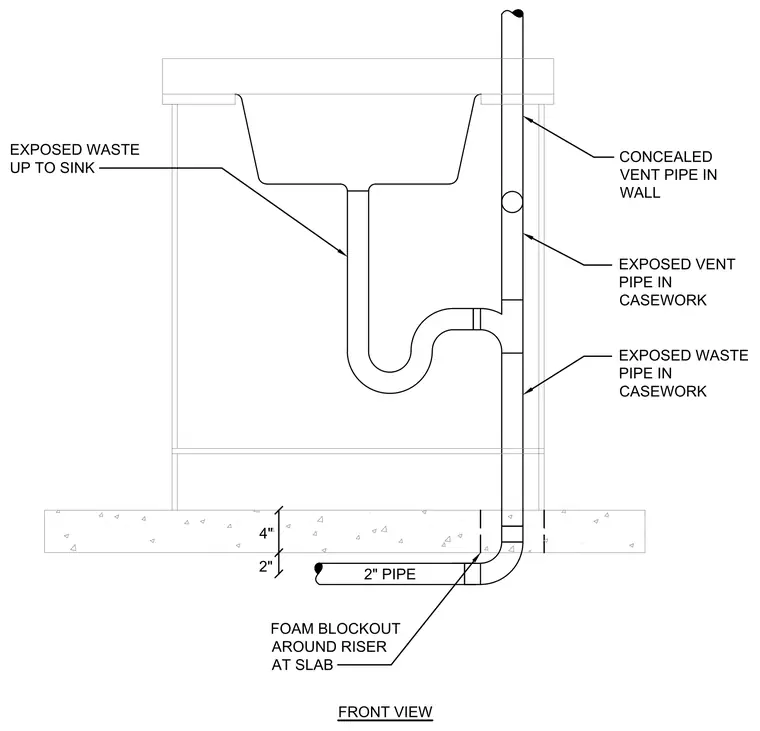

An exposed waste pipe extends upward to the sink trap from a two-inch pipe below the concrete slab. A foam blockout surrounds the riser penetration at the slab with four-inch and two-inch vertical dimensioning. The waste pipe transitions within the casework to connect with an exposed vent pipe, which then runs vertically into a concealed vent pipe within the wall.
FOAM BLOCKOUT AROUND RISER AT SLAB 2" 4" 2" PIPE EXPOSED WASTE UP TO SINK EXPOSED VENT PIPE IN CASEWORK EXPOSED WASTE PIPE IN CASEWORK CONCEALED VENT PIPE IN WALL FRONT VIEW
