Mechanical · M-QNS2F

In-Line Pump Piping Details

Elements

About this detail

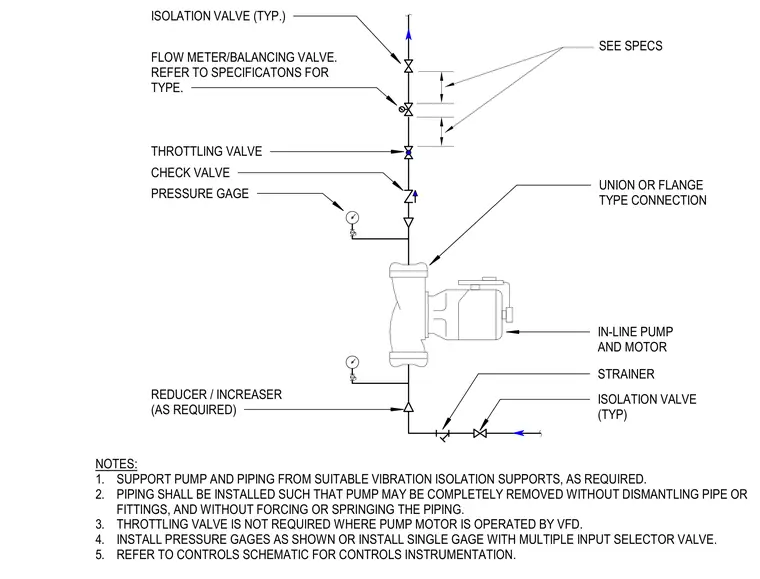

An in-line pump and motor assembly incorporates an upstream strainer, flow meter or balancing valve, and isolation valves for maintenance isolation. Piping connections utilize unions or flanges for removable installation, complemented by reducers or increasers as required by pipe sizing. Pressure gauges are installed on both suction and discharge sides, while a check valve and throttling valve manage flow direction and regulation on the discharge line. The pump and associated piping are supported from vibration isolation supports to prevent transmission of mechanical noise and movement. Piping arrangements are installed to allow complete pump removal without dismantling adjacent pipe fittings or placing the pipe under stress.
