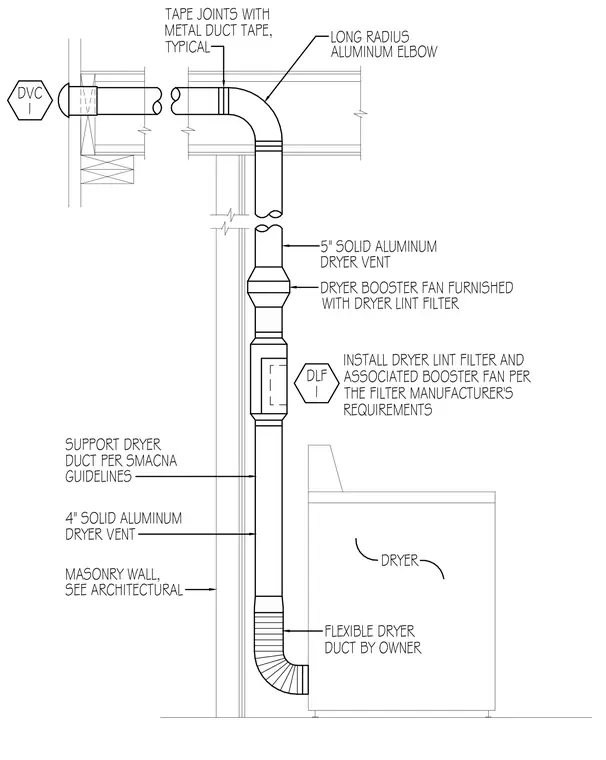

A flexible dryer duct connects to the dryer and transitions to a four-inch solid aluminum dryer vent supported by a masonry wall. A dryer lint filter and associated booster fan are installed per the manufacturer's requirements. The vent transitions to a five-inch solid aluminum dryer vent utilizing a long radius aluminum elbow. All duct joints are taped with metal duct tape and the ductwork is supported per SMACNA guidelines.
5" SOLID ALUMINUM DRYER VENT LONG RADIUS ALUMINUM ELBOW TAPE JOINTS WITH METAL DUCT TAPE, TYPICAL DRYER FLEXIBLE DRYER DUCT BY OWNER DVC 1 4" SOLID ALUMINUM DRYER VENT DLF 1 INSTALL DRYER LINT FILTER AND ASSOCIATED BOOSTER FAN PER THE FILTER MANUFACTURER'S REQUIREMENTS MASONRY WALL, SEE ARCHITECTURAL SUPPORT DRYER DUCT PER SMACNA GUIDELINES DRYER BOOSTER FAN FURNISHED WITH DRYER LINT FILTER
