Flexible duct connects to a ceiling diffuser mounted within an acoustical ceiling system. The flexible duct maintains a minimum bend radius of one and a half times the diameter and a maximum length of five feet. The plenum return diffuser integrates directly into the ceiling grid.

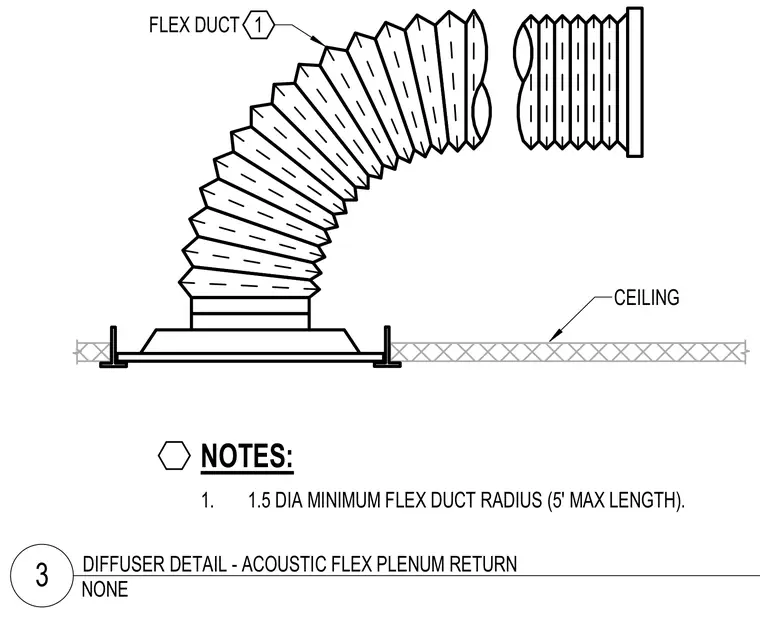

1. 1.5 DIA MINIMUM FLEX DUCT RADIUS (5' MAX LENGTH). NOTES: FLEX DUCT CEILING 1 NONE 3 DIFFUSER DETAIL - ACOUSTIC FLEX PLENUM RETURN
