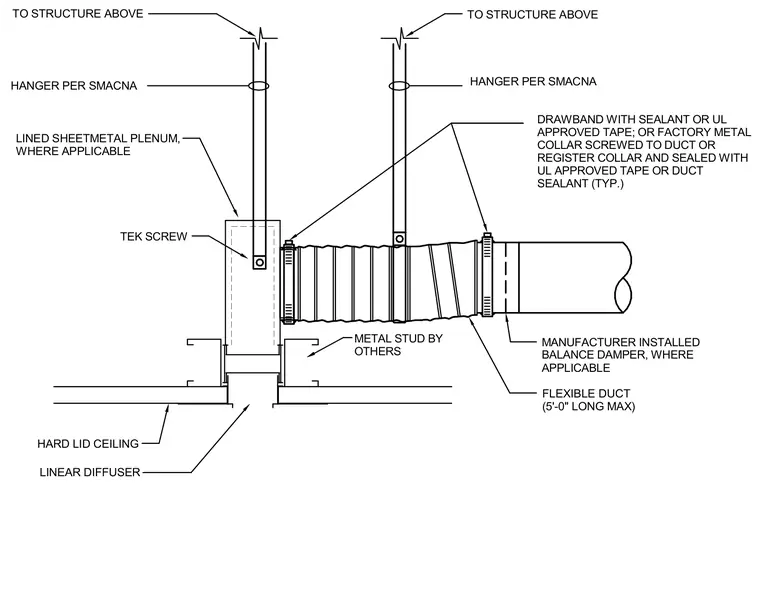

A linear diffuser is integrated into a hard lid ceiling framed with metal studs by others and connected to a lined sheet metal plenum. Hangers compliant with SMACNA standards anchor to the structure above, supporting the plenum and flexible duct. A flexible duct of five feet maximum length attaches to the plenum and supply run using drawbands with sealant or UL-approved tape, or factory metal collars secured with screws and sealed. A manufacturer-installed balance damper is included in the run where applicable.
FLEXIBLE DUCT (5'-0" LONG MAX) HARD LID CEILING METAL STUD BY OTHERS LINEAR DIFFUSER TEK SCREW TO STRUCTURE ABOVE TO STRUCTURE ABOVE DRAWBAND WITH SEALANT OR UL APPROVED TAPE; OR FACTORY METAL COLLAR SCREWED TO DUCT OR REGISTER COLLAR AND SEALED WITH UL APPROVED TAPE OR DUCT SEALANT (TYP.) HANGER PER SMACNA HANGER PER SMACNA MANUFACTURER INSTALLED BALANCE DAMPER, WHERE APPLICABLE LINED SHEETMETAL PLENUM, WHERE APPLICABLE
