Mechanical · M-QJQYB

Hydronic Fan Coil Hanging Detail

Materials

Elements

About this detail

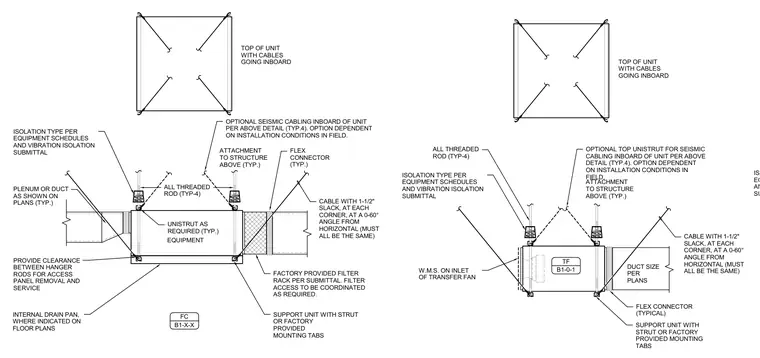

Suspended HVAC equipment is hung from the structure above using four threaded rods with vibration isolation specified per equipment schedules and submittals. Unistrut channels or factory-provided mounting tabs support the unit, with clearance maintained for access panel removal and service. Flexible connectors join the equipment to ductwork as shown on plans, and a factory-provided filter rack is coordinated as required. Optional seismic cabling is installed inboard at each corner with one and a half inches of slack at a zero to sixty degree angle from horizontal.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
