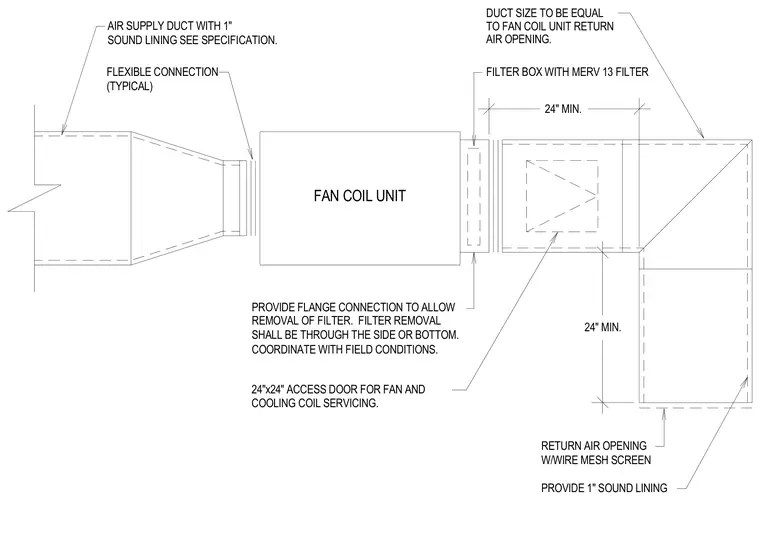

An air supply duct with one-inch sound lining connects to the fan coil unit through a typical flexible connection. A twenty-four-inch minimum filter box houses a MERV 13 filter and features a flange connection to allow cooling coil servicing and filter removal from the side or bottom coordinated with field conditions. A twenty-four by twenty-four-inch access door is provided for fan and cooling coil servicing. The return air duct features a return air opening with a wire mesh screen, one-inch sound lining, and a size equal to the fan coil unit return air opening.
FAN COIL UNIT COORDINATE WITH FIELD CONDITIONS. SHALL BE THROUGH THE SIDE OR BOTTOM. REMOVAL OF FILTER. FILTER REMOVAL 24"x24" ACCESS DOOR FOR FAN AND PROVIDE FLANGE CONNECTION TO ALLOW COOLING COIL SERVICING. FLEXIBLE CONNECTION (TYPICAL) SOUND LINING SEE SPECIFICATION. AIR SUPPLY DUCT WITH 1" RETURN AIR OPENING W/WIRE MESH SCREEN PROVIDE 1" SOUND LINING 24" MIN. FILTER BOX WITH MERV 13 FILTER 24" MIN. AIR OPENING. TO FAN COIL UNIT RETURN DUCT SIZE TO BE EQUAL
