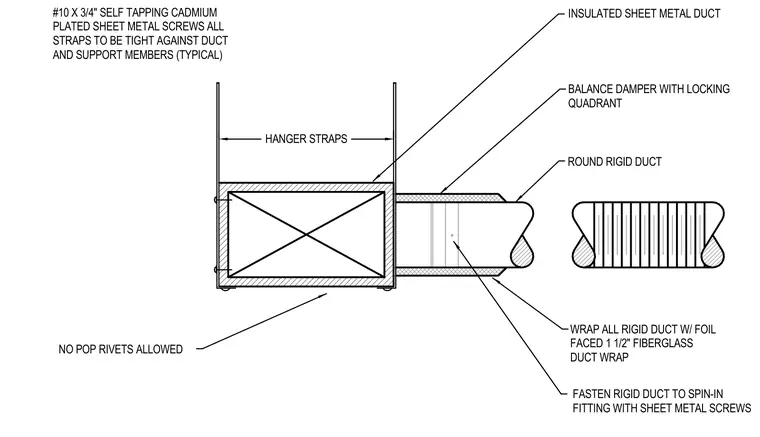

An insulated sheet metal trunk duct connects to a round rigid branch duct via a spin-in fitting containing a balance damper with a locking quadrant. The rigid duct is wrapped with foil-faced one and a half inch fiberglass insulation and secured to the spin-in fitting using number ten by three-quarters inch self-tapping cadmium-plated sheet metal screws without pop rivets. Hanger straps support the main duct assembly tightly against the duct and support members. All hanger straps and fasteners must be installed tightly according to typical standards.
INSULATED SHEET METAL DUCT BALANCE DAMPER WITH LOCKING QUADRANT ROUND RIGID DUCT WRAP ALL RIGID DUCT W/ FOIL FACED 1 1/2" FIBERGLASS DUCT WRAP FASTEN RIGID DUCT TO SPIN-IN FITTING WITH SHEET METAL SCREWS NO POP RIVETS ALLOWED #10 X 3/4" SELF TAPPING CADMIUM PLATED SHEET METAL SCREWS ALL STRAPS TO BE TIGHT AGAINST DUCT AND SUPPORT MEMBERS (TYPICAL) HANGER STRAPS
