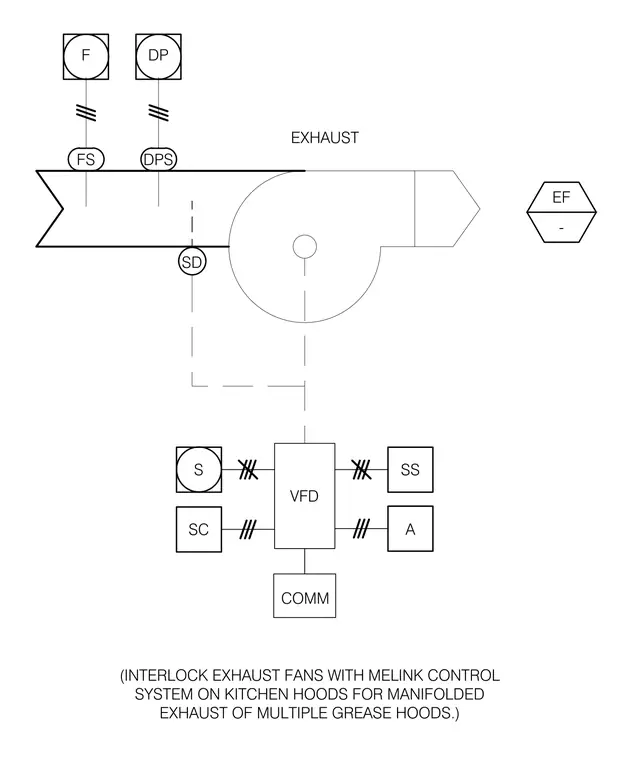

This diagram details the control wiring and interlock connections for an exhaust fan serving manifolded kitchen grease hoods. The variable frequency drive connects to communication lines, sensors, control switches, and safety devices including a smoke detector and differential pressure switch. Exhaust fans interlock with the Melink control system on the kitchen hoods to manage manifolded grease hood exhaust operations.
VFD COMM SS S SC A (INTERLOCK EXHAUST FANS WITH MELINK CONTROL SYSTEM ON KITCHEN HOODS FOR MANIFOLDED EXHAUST OF MULTIPLE GREASE HOODS.) SD F DP EXHAUST FS DPS EF -
