Mechanical Equipment Plywood Backboard Support Assembly

Materials

Timber / Wood

Elements

Floors / Slabs

Connections

Bolted Connection

About this detail

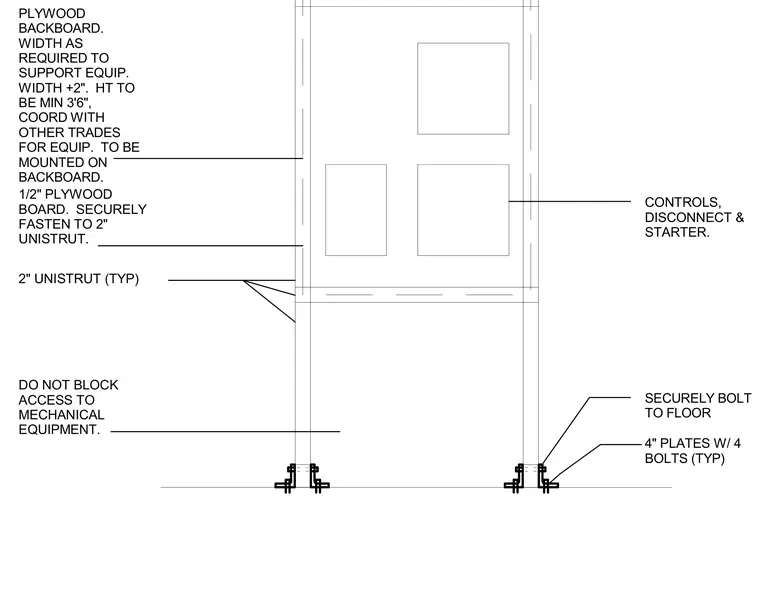

A half-inch plywood backboard is securely fastened to typical two-inch Unistrut metal framing channels to support mechanical equipment, controls, disconnects, and motor starters. The backboard width is sized to match the equipment plus two inches, with a minimum height of three feet six inches, coordinated with other trades. The Unistrut vertical supports are anchored to the floor using four-inch plates with four bolts each, positioned to maintain clear access to adjacent mechanical equipment.
