Mechanical · M-QF5R7

Duct Support at Roof Detail

Materials

Steel Glass / Glazing Metal (misc.)

Elements

Roofs Decks Waterproofing / Flashing Connections / Plates

Connections

Bolted Connection

About this detail

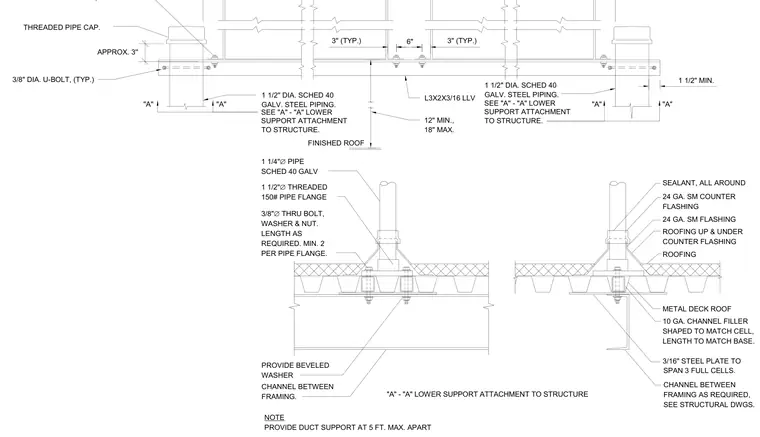

A duct support assembly mounts to a metal deck roof system. The support structure uses 1 1/2-inch diameter schedule 40 galvanized steel piping secured with threaded pipe caps and 3/8-inch diameter U-bolts, attached via an L3x2x3/16 angle member. The base plate assembly includes a 3/16-inch steel plate spanning three full metal deck cells, supported by a 10-gauge channel filler shaped to match the cell profile and a channel between framing. Attachment to the roof structure utilizes 3/8-inch diameter through bolts with washers, nuts, and beveled washers. Weatherproofing at the penetration is achieved with a 24-gauge sheet metal flashing and counter flashing, roofing run up and under the counter flashing, and sealant applied all around.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
