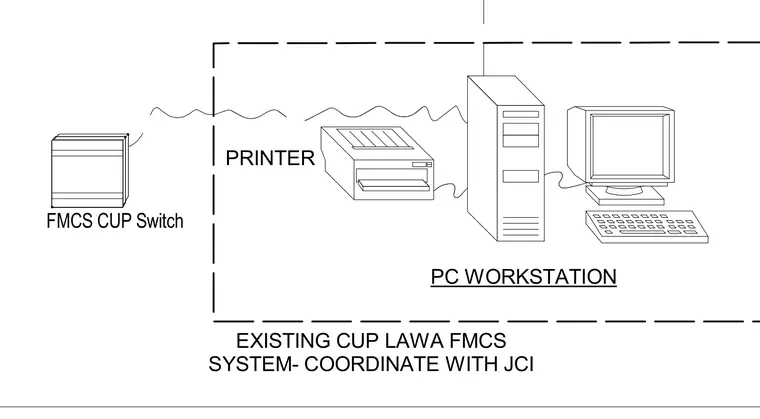

An existing central utility plant facility management control system coordinates with Johnson Controls hardware via a network switch. A personal computer workstation and printer connect to the central system network. Routing requires field coordination with the controls contractor.
PRINTER PC WORKSTATION EXISTING CUP LAWA FMCS SYSTEM- COORDINATE WITH JCI FMCS CUP Switch
