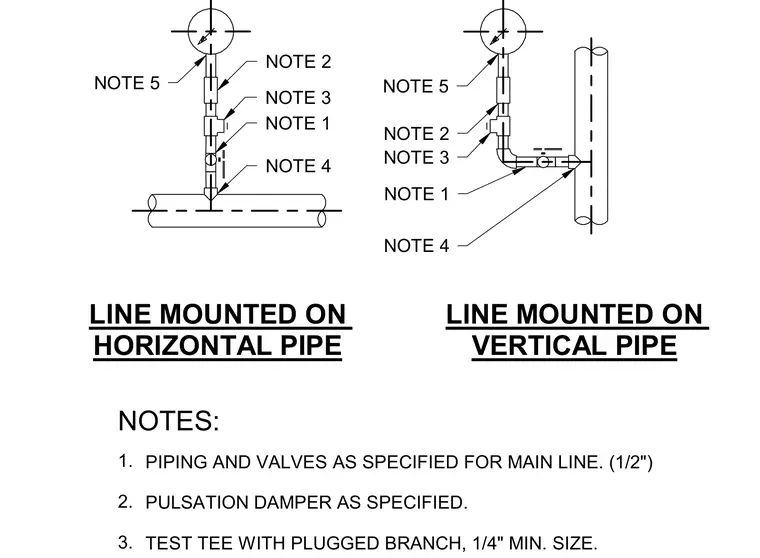

A pressure gauge device is line-mounted on horizontal or vertical piping using specified main line piping and valves, incorporating a one-half-inch pulsation damper and a test tee with a one-quarter-inch minimum plugged branch.
LINE MOUNTED ON HORIZONTAL PIPE PIPING AND VALVES AS SPECIFIED FOR MAIN LINE. (1/2") PULSATION DAMPER AS SPECIFIED. TEST TEE WITH PLUGGED BRANCH, 1/4" MIN. SIZE. NOTES: 1. 2. 3. NOTE 5 NOTE 2 NOTE 3 NOTE 1 NOTE 4 NOTE 2 NOTE 3 NOTE 1 NOTE 4 NOTE 5 LINE MOUNTED ON VERTICAL PIPE
