Mechanical · M-Q97HN

Chemical Treatment Detail

Elements

About this detail

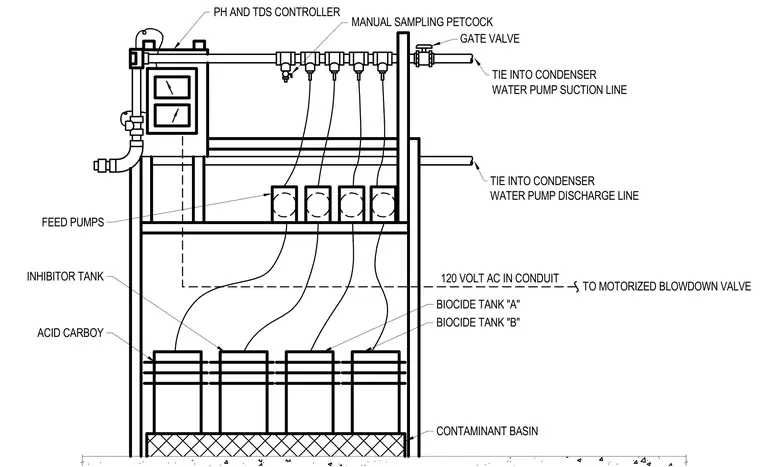

The chemical treatment system includes an acid carboy, inhibitor tank, biocide tank A, and biocide tank B set within a contaminant basin. Feed pumps draw from the tanks and feed into a main piping line equipped with multiple manual sampling petcocks, a gate valve, and a pH and TDS controller. The system ties into the condenser water pump suction line and discharge line, and connects to a motorized blowdown valve powered by 120-volt alternating current in conduit.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
