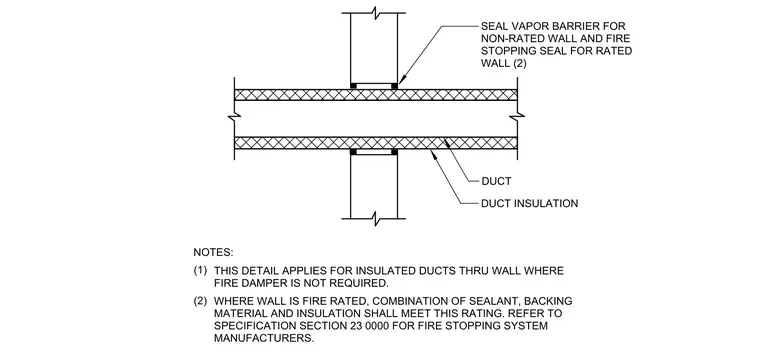

An insulated duct passes through a wall opening where a fire damper is not required. A vapor barrier seal is applied at the penetration for non-rated walls, while a fire stopping seal is used for rated walls. The combination of sealant, backing material, and insulation must meet the required fire rating when penetrating rated assemblies.
DUCT DUCT INSULATION (1) NOTES: THIS DETAIL APPLIES FOR INSULATED DUCTS THRU WALL WHERE FIRE DAMPER IS NOT REQUIRED. (2) WHERE WALL IS FIRE RATED, COMBINATION OF SEALANT, BACKING MATERIAL AND INSULATION SHALL MEET THIS RATING. REFER TO SPECIFICATION SECTION 23 0000 FOR FIRE STOPPING SYSTEM MANUFACTURERS. SEAL VAPOR BARRIER FOR NON-RATED WALL AND FIRE STOPPING SEAL FOR RATED WALL (2)
