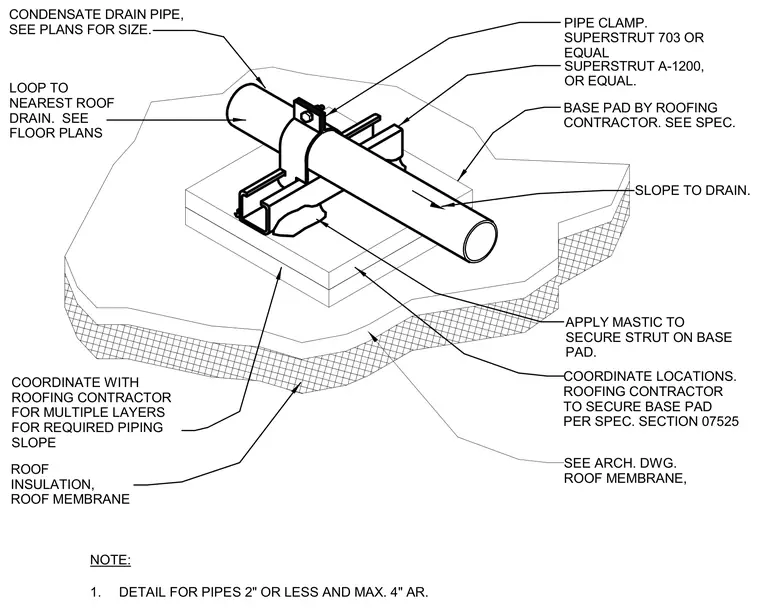

A condensate drain pipe is supported on a low-slope roof assembly. The pipe rests in a pipe clamp secured to a Superstrut channel, which is set atop a base pad adhered with mastic. The base pad is secured directly to the roof membrane and insulation layers by the roofing contractor, with locations coordinated for proper pipe slope and routing to the nearest roof drain.
SLOPE TO DRAIN. APPLY MASTIC TO SECURE STRUT ON BASE PAD. COORDINATE LOCATIONS. ROOFING CONTRACTOR TO SECURE BASE PAD PER SPEC. SECTION 07525 SEE ARCH. DWG. ROOF MEMBRANE, ROOF INSULATION, ROOF MEMBRANE COORDINATE WITH ROOFING CONTRACTOR FOR MULTIPLE LAYERS FOR REQUIRED PIPING SLOPE NOTE: 1. DETAIL FOR PIPES 2" OR LESS AND MAX. 4" AR. CONDENSATE DRAIN PIPE, SEE PLANS FOR SIZE. PIPE CLAMP. SUPERSTRUT 703 OR EQUAL SUPERSTRUT A-1200, OR EQUAL. BASE PAD BY ROOFING CONTRACTOR. SEE SPEC. LOOP TO NEAREST ROOF DRAIN. SEE FLOOR PLANS
