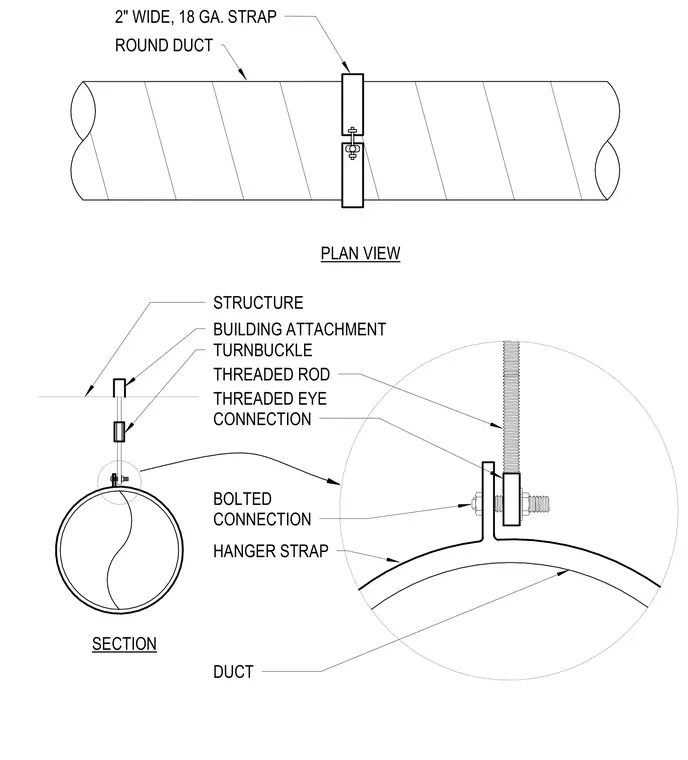

An exposed round duct is suspended from the overhead building structure using a two-inch wide, 18-gauge hanger strap wrapped around the duct circumference. A threaded rod connects to a building attachment at the structure and extends down to a turnbuckle for height adjustment. The lower end of the assembly features a threaded eye connection joined to the hanger strap via a bolted connection.
2" WIDE, 18 GA. STRAP ROUND DUCT STRUCTURE BUILDING ATTACHMENT TURNBUCKLE THREADED ROD THREADED EYE CONNECTION BOLTED CONNECTION HANGER STRAP DUCT SECTION PLAN VIEW
