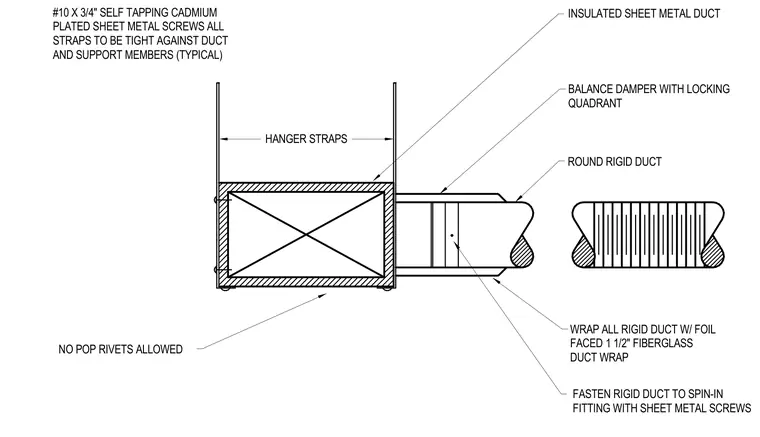

An insulated sheet metal main duct receives a round rigid branch duct through a spin-in fitting equipped with a balance damper and locking quadrant. The round rigid duct is wrapped with one and a half inch foil-faced fiberglass insulation and secured to the fitting using number ten by three-quarter-inch self-tapping cadmium-plated sheet metal screws, prohibiting the use of pop rivets. Hanger straps support the main duct tightly against its support members.
INSULATED SHEET METAL DUCT BALANCE DAMPER WITH LOCKING QUADRANT ROUND RIGID DUCT WRAP ALL RIGID DUCT W/ FOIL FACED 1 1/2" FIBERGLASS DUCT WRAP FASTEN RIGID DUCT TO SPIN-IN FITTING WITH SHEET METAL SCREWS NO POP RIVETS ALLOWED #10 X 3/4" SELF TAPPING CADMIUM PLATED SHEET METAL SCREWS ALL STRAPS TO BE TIGHT AGAINST DUCT AND SUPPORT MEMBERS (TYPICAL) HANGER STRAPS
