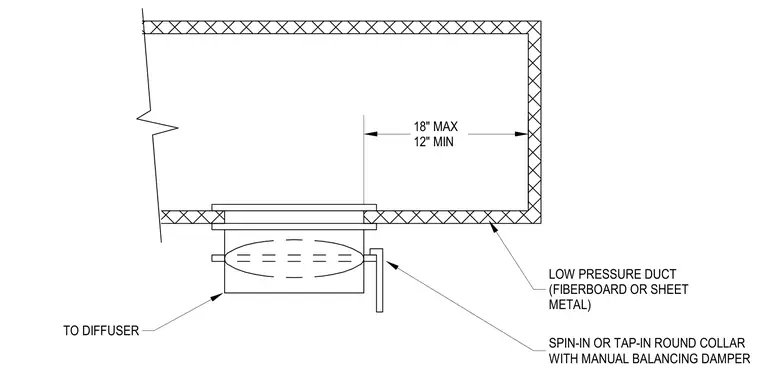

A spin-in or tap-in round collar with an integrated manual balancing damper connects to a low pressure fiberboard or sheet metal main duct. The branch collar routes air toward a diffuser and maintains a specified distance between twelve and eighteen inches from the duct end. The sheet metal or fiberboard duct wall receives the mechanical tap connection.
18" MAX 12" MIN LOW PRESSURE DUCT (FIBERBOARD OR SHEET METAL) SPIN-IN OR TAP-IN ROUND COLLAR WITH MANUAL BALANCING DAMPER TO DIFFUSER
