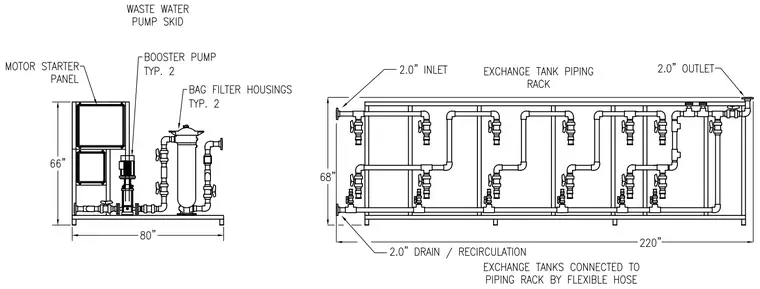

The waste water pump skid assembly integrates two booster pumps and two bag filter housings mounted on an 80-inch wide by 66-inch high structural skid frame. The adjacent exchange tank piping rack spans 220 inches in length and 68 inches in height, featuring a 2.0-inch inlet, a 2.0-inch outlet, and a 2.0-inch drain or recirculation connection. Exchange tanks connect to the piping rack by flexible hose, while a motor starter panel is mounted directly to the main pump skid framing.
