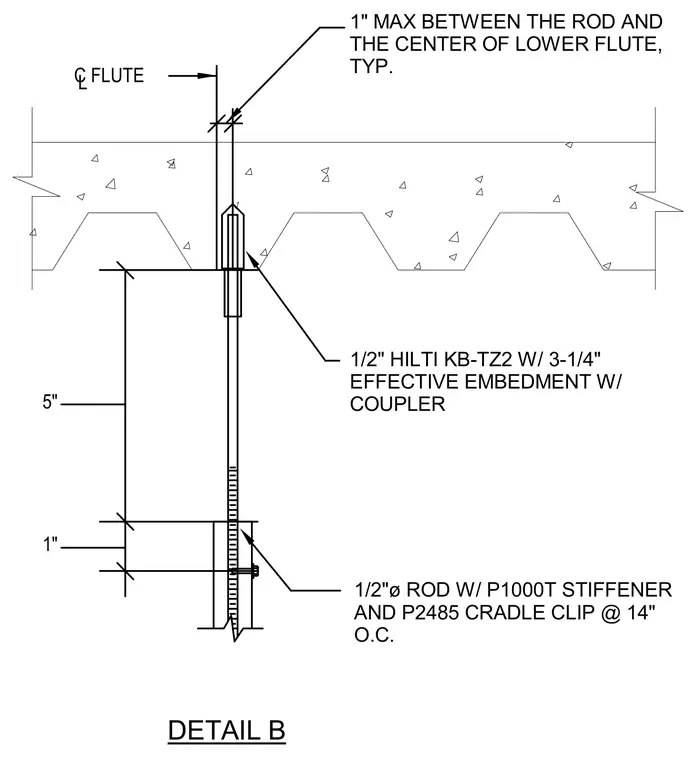

A half-inch diameter threaded rod hangs from a concrete slab on metal deck using a half-inch Hilti KB-TZ2 anchor with a three-and-a-quarter-inch effective embedment and a coupler. The rod features a P1000T stiffener and a P2485 cradle clip spaced at fourteen inches on center. A maximum one-inch spacing is maintained between the rod and the center of the lower deck flute.
DETAIL B 1/2"ø ROD W/ P1000T STIFFENER AND P2485 CRADLE CLIP @ 14" O.C. 1/2" HILTI KB-TZ2 W/ 3-1/4" EFFECTIVE EMBEDMENT W/ COUPLER 1" 5" C FLUTE L 1" MAX BETWEEN THE ROD AND THE CENTER OF LOWER FLUTE, TYP.
